Walkout Edition

BUILT FOR SLOPED LOTS

The lower level works with the hill, not against it. Two levels plus a mezzanine, drawn by a licensed architect.

Walkout lower level Two levels + mezzanine 20 sheets PDF + CAD

Walkout lower level · 2 levels + mezzanine · PDF + CAD

Custom architect rate: $2,500–$5,000

$299one time

20 sheets + editable CAD. Instant download.

Get the Plans →
🔒 Stripe secure ⬇ Instant download 🛡 15-day money-back

Most cabin plans assume a flat lot.

This one does not.

The back of the plan sits into the hill and the front walks straight out at the low side, so the slope buys you an extra level instead of costing you one. The lower level sits 8 feet below the main floor: buried on one side, a lift and slide door straight onto the terrace on the other.

Key features

  • Lower level opens straight out to grade on the downhill side
  • Back wall drawn as retention against the hill, shown indicatively
  • Utility area on the lower level with a spiral stair to the main floor
  • Living, kitchen and dining under a curved ridge, wrapped by a deck
  • Master bedroom, master bath, WC, powder room, pantry and laundry
  • Second bedroom on the mezzanine, open to the room below

This is the house the sheets describe.

The walkout level tucked under the deck, the mezzanine riding the curve of the roof.

Front view of the Walkout Edition: full-height glass under the curved roof, wrap-around deck over the walkout level The Walkout Edition by a lake, the roof sweeping up toward the water and the deck stepping down to the shore
Double-height living room with stone fireplace, wood ceiling, mezzanine stair and glass wall

The sheet that sells it: the walkout level.

The hatched area is the hill. The open side walks out. The rest is utility space: finish it as a workshop, guest room, storage or garage.

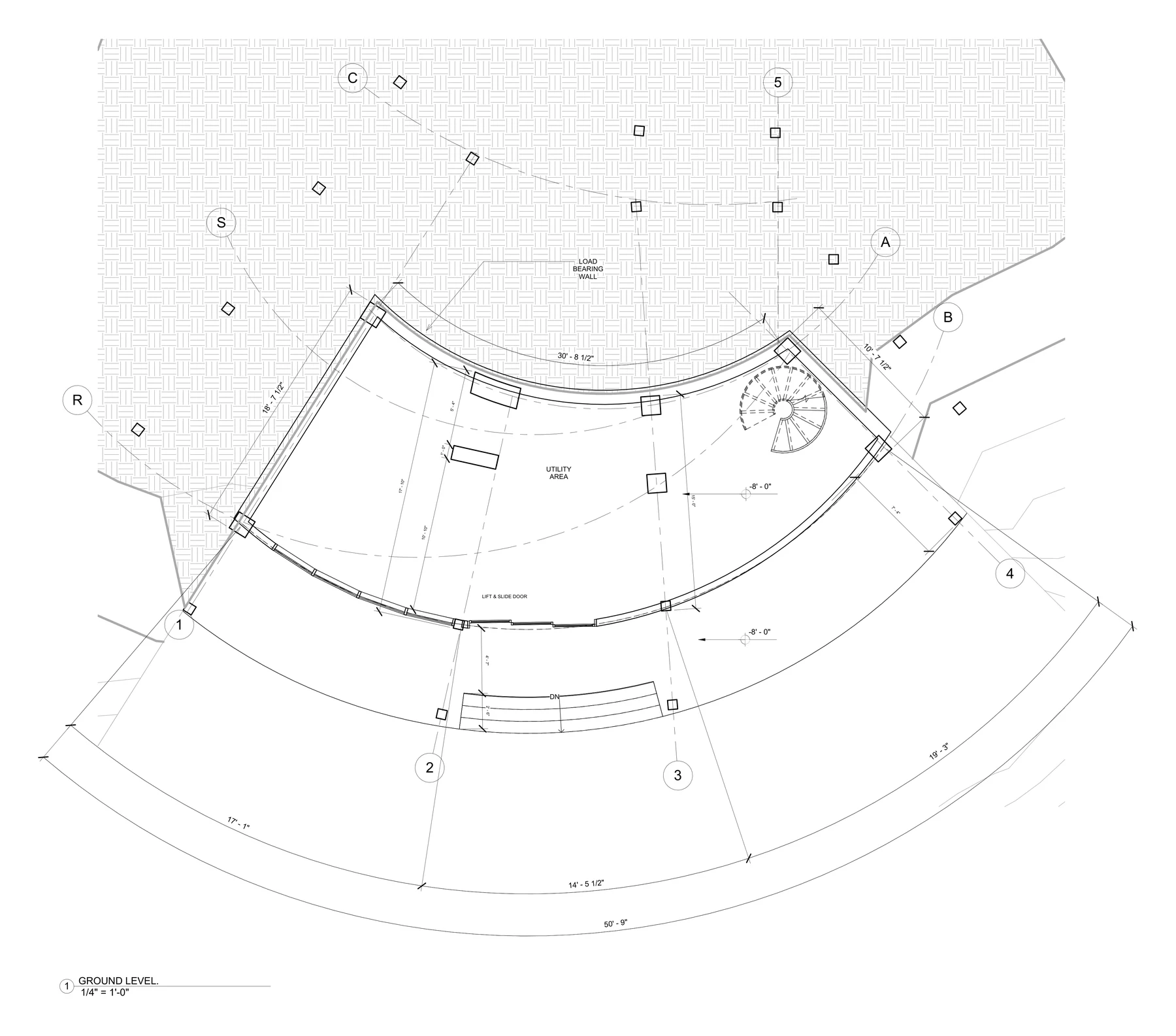

Walkout lower level plan, dimensioned, showing the utility area, spiral stair and the lift and slide door out to grade

A3.1 · Walkout level, -8'-0" · 1/4" = 1'-0"

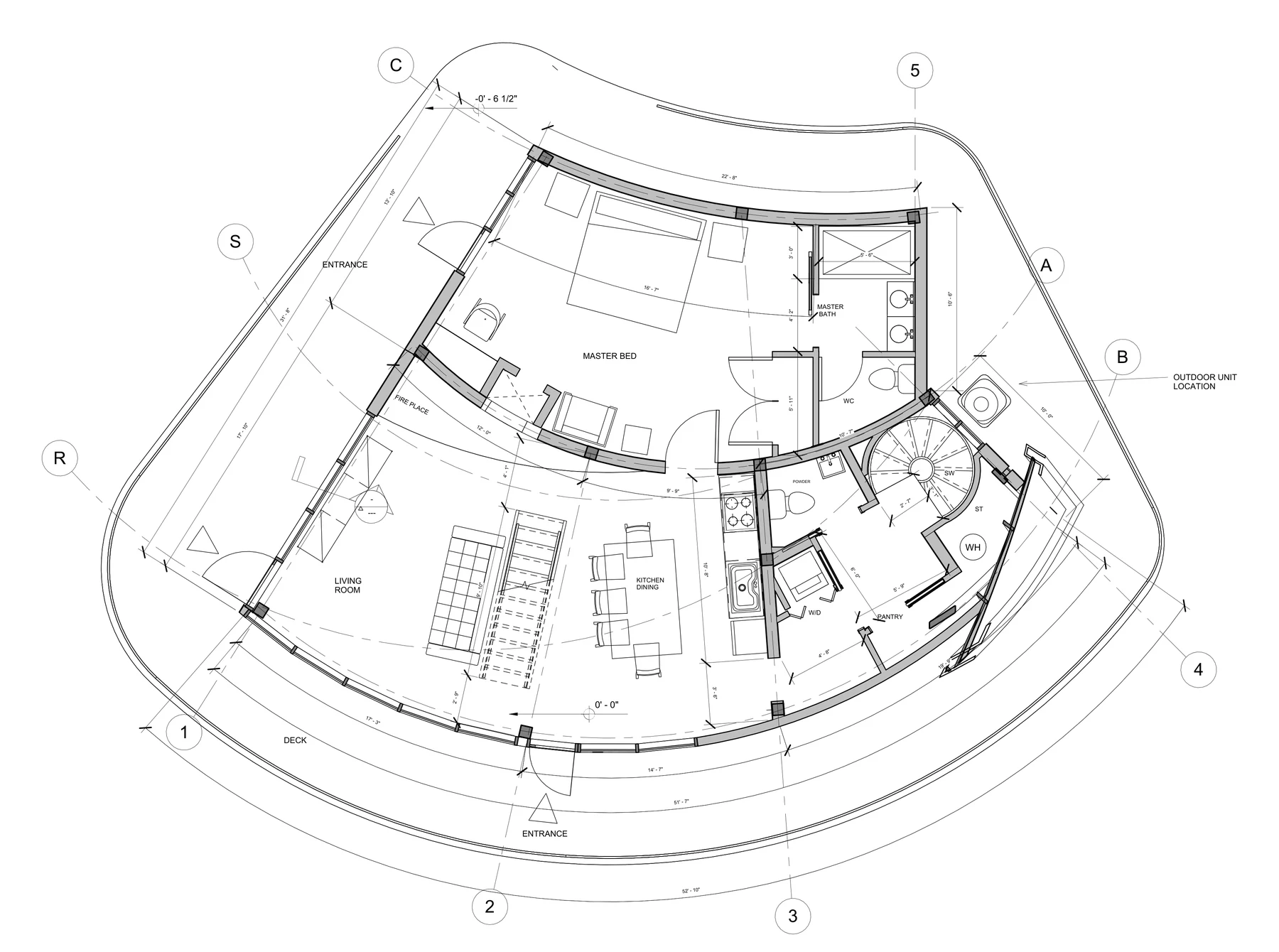

Main floor plan showing living room, fireplace, kitchen and dining, master bedroom, master bath, WC, powder room, pantry and deck

A4 · Main floor, 0'-0" · 1/4" = 1'-0"

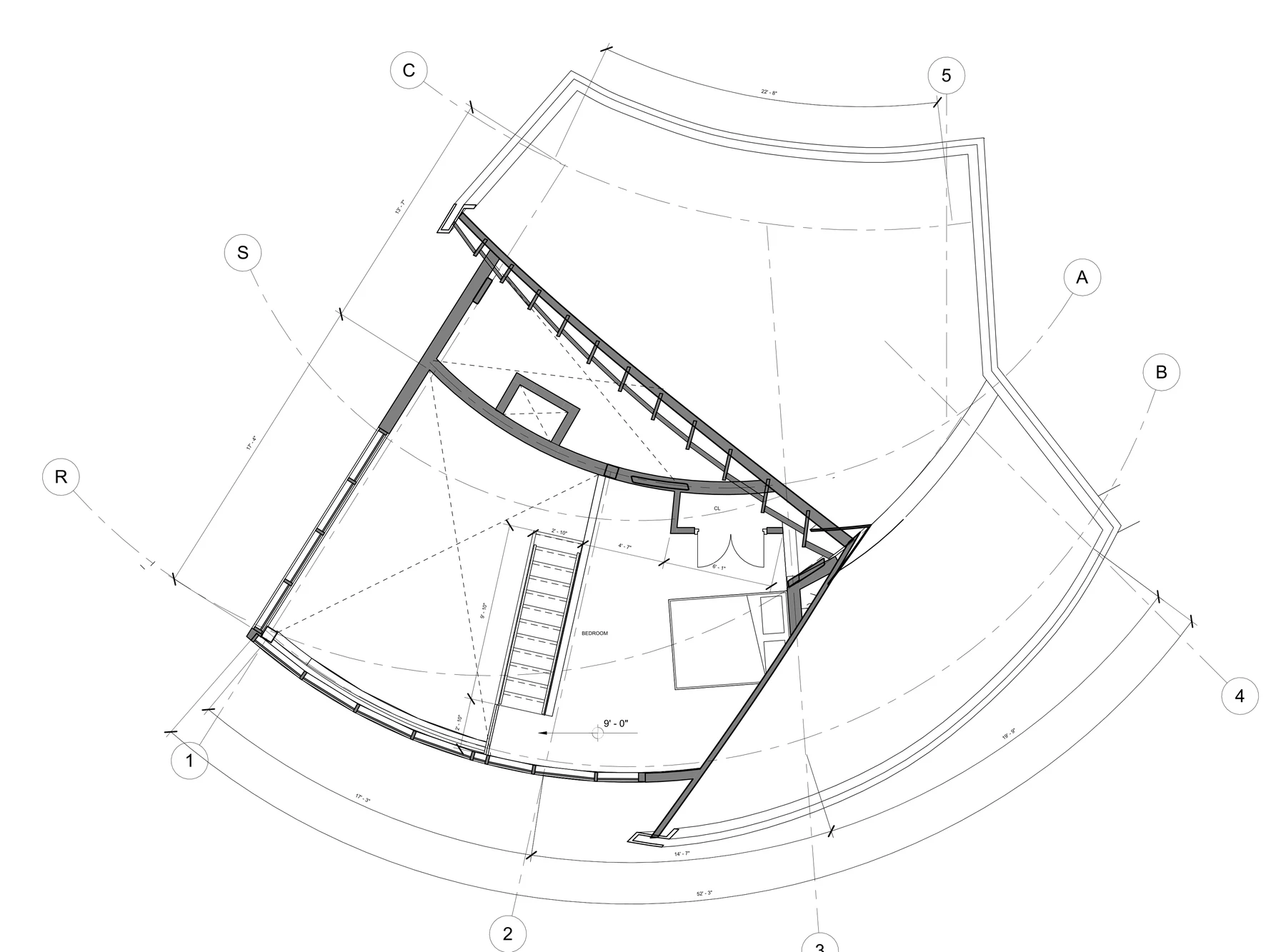

Mezzanine plan showing the second bedroom with closet, open to the living space below

A5 · Mezzanine, 9'-0" · 1/4" = 1'-0"

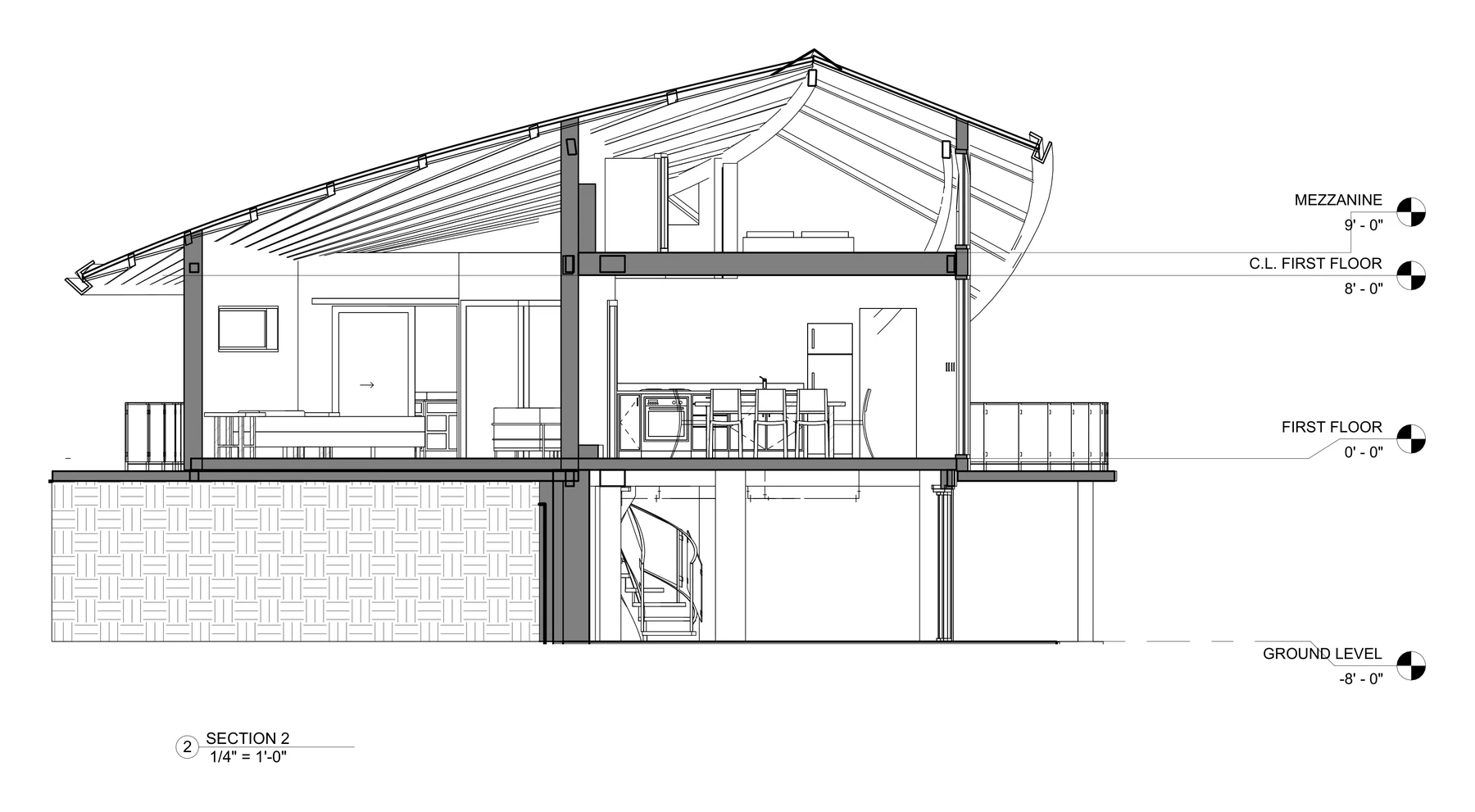

Section through the cabin showing the lower level buried on one side and open on the other, with level markers at minus 8 feet, 0 feet and 9 feet

A9 · Section 2 · ground -8'-0", first floor 0'-0", mezzanine 9'-0"

What is in the download.

Twenty sheets, plus the CAD to edit them.

Where this set comes from

This is not a plan drawn to be sold. It is the working set from a live studio commission: a shell cabin for a client building on a slope, issued for bidding. That is why the lower level is resolved rather than sketched.

The plans are fully dimensioned, but the set carries no area schedule. We are not going to print a square footage we cannot back up off the drawings.

Technical specifications

LevelsWalkout lower level, main floor, mezzanine
Lower level-8'-0"
Main floor0'-0"
Ceiling, main floor8'-0"
Mezzanine9'-0"
Top of roof26'-7"
BedroomsMaster on the main floor, second on the mezzanine
BathroomsMaster bath, WC, powder room
Walls as drawnReinforced concrete to the buried side, CMU with smooth stucco
GlazingAluminium framed system, lift and slide door
RoofGalvanized metal, waterproofing, insulation, wood ceiling
FoundationFoundation plan with footing schedule, indicative
Drawing scale1/4" = 1'-0" on plans and sections
FilesPDF (20 sheets) + DWG

What happens after you buy.

Plainly, so there are no surprises.

The structure and the MEP in this set are indicative. They show intent and coordination between the levels, not a code check for your soil, snow or seismic zone. This set is not a permit submission.

From there, two ways to go. If you want help getting it permitted where you are, we do that part with you. Or take the editable CAD straight to your own engineer. Either way, the files are yours from the moment you download.

Not sure which fits you? Book the free call and we will tell you honestly.
